Inquire on Run Windows

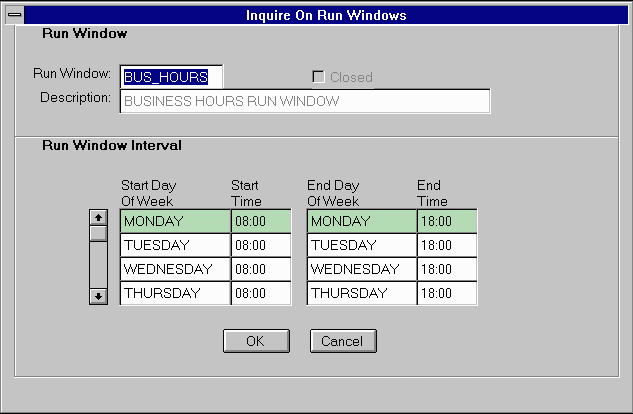

Inquire On Run Windows - JBSF4411

Purpose	To inquire on run windows
Subsystem	Job Control and Scheduling
Structure	Two Blocks	Run Window Run Window Interval

Run Window

Explanation

This form can be called from the forms:

Maintain Request Details (JBSF5210)

Maintain Request Schedule Details (JBSF5212)

Maintain Standing Request Frequency (JBSF5211)

Maintain Job Details (JBSF4110) via Job Run Window Restriction pop-up window

Maintain Batch Queue Details (JBSF4500)

It is accessed via an icon in the calling form, and appears as a pop-up window overlaying the form.

Although the form itself is inquiry only, it can be used in one of three ways:

To display details of a run window already in use in the calling form. Only the relevant record is presented initially, though the form can be re-queried.

To provide a run window to insert as a new entry in the calling form (except for JBSF5212, JBSF5211). All open run windows are available for selection when the form is entered.

To supply a run window to replace the existing one in the calling form (JBSF4500, and JBSF5210 only). The form is queried, and a new record selected.

The days and times during which the run window is active are shown in the Run Window Interval block below.

To inquire on available run windows, using the Inquire on Run Windows form:

In Query mode:

Optionally, enter search criteria in Run Window field.

Execute the query.

Select OK to return to the calling form with selected run window record inserted (where applicable). (Using Cancel button returns without inserting record.)

Rules:

Search criteria can be either the full name, or part of the name + wild card character %.

When queried, only open run windows are returned.

Run Window Interval
Explanation
This block is used to display, for the run window selected in the block above, the set of times within a week during which the run window is active.
Examples
Run Window	Start Day Of Week	Start Time	End Day Of Week	End Time
AFT-HOURS	MONDAY TUESDAY WEDNESDAY THURSDAY FRIDAY	18:01 18:01 18:01 18:01 18:01	TUESDAY WEDNESDAY THURSDAY FRIDAY MONDAY	07:59 07:59 07:59 07:59 07:59
WEEKEND	FRIDAY	00.00	SUNDAY	23:59

Last Modified on 30 September 1999
